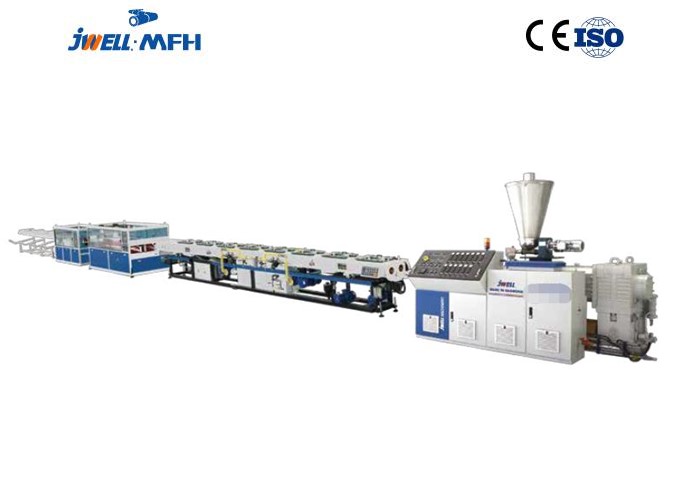

63mm - 110mm PVC Double Pipe Extrusion Line
Description:
The PVC pipe extrusion line is developed by Jwell based on European
advanced technology and R&D experience of the plastic pipe
machinery for more than 23 years . It can produce water supply ,
drainage, cable protection pipes and pipe range from 50mm to 110mm
Machine features:
- Advanced SIEMENS computer control system(PLC) or OMRON temperature
meter control system for your choice
- The high output and the high quality of pipe are obtained by the
combination of special designed JINHAILUO screw and barrel
- High torque precise gearbox and AC frequency conversion or
permanent magnetic servo motor can ensure high output and low
energy consumption in long run ;
- Optimized mold and calibrator can ensure high-quality pipe ;
- The haul off unit equipped with servo motor ensures wide traction
range, high precision synchronous operation and it adopts digital
communication interface with extruder ;
- Saw cutter, planetary cutter and non-dust cutter for your choice
- Changing some parts of the line can also M-PVC pipe, C-PVC pipe,
inner spiral wall pipe, inner hollow wall pipe, formed core pipe
and multi layer pipe.
- Conical twin screw extruder and parallel twin screw extruder for
your choice
Machine specification:
| Extruder model: | MFH-80/173 conical twin screw extruder |
| Main motor: | 75KW AC motor |
| Capacity: | 400-500kg/h |
| Line speed: | 1-10m/min |
| Pipe range: | 50mm-110mm |
| Line length: | 26m |
Pipe application:
- Water supply
- Drainage
- Irrigation
- Cable protection
Pipe connection methods:
About us
Changzhou Dyun Environmental Technology Co.,Ltd is a plant company
of Jwell Machinery Co.,ltd which specialized in production of all
kinds of plastic crusher, single screw pelletizing line, paraller
twin screw pelletizing line, conical twin screw pelletizing line,
PP,PE,PET crushing, washing and drying line, mixer, dryer, feeder
and PVC compounding systems. All products have CE certification.
Every product can push the field forwarder to enegy saving,
convinence and environmentation. They give new life to plastic.
After-sale service:
Our Products Have Passed Many Certificates.
FAQ
1. How soon can I get a quotation?
For most projects, once we know the necessary information about the
recycled raw material, we can provide you with a quotation within
24 hours.
2. Can I have a customized design?
We design and construct each project according to customer's needs.
3. How do I know I can trust ordering from you?
Jwell is the top class manufacturer of plastic machinery in
China.The first screw was made by our company(JIN HAI LUO) in
1978.We provide professional extruder and all kinds of extrusion
line,such as pipe,sheet, profile, plate, film,blow moulding and
recycling extrusion line.We have delivered our machines to over 170
countries.We also have overseas offices in many countries.Customers
are satisfied with the machines and our service.
