    3000ml Double Station 2 Cavity Pet Blowing Machine

    Ask Lasest Price
    Brand Name : JWELL
    Model Number : JWZ-BM02D/05D/12D/20D Double Station
    Certification : CE, ISO series
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10+unit+per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

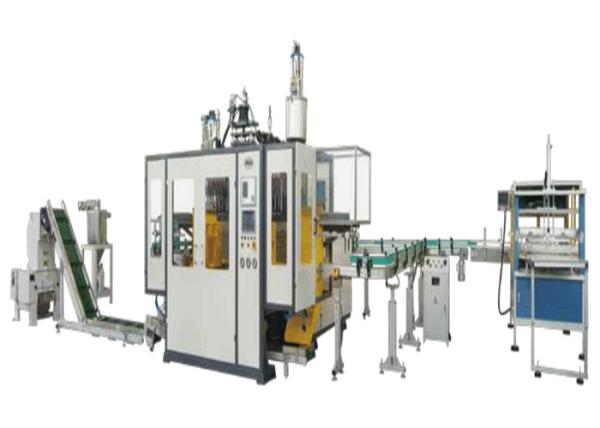

    3000ml Double Station 2 Cavity Pet Blowing Machine

    JWZ-BM02D/05D/12D/20D Double Station Blow Molding Machine
    Performance and advantages:
    ·Suitable for producing 100ml-3000ml different size of Milk bottle,soy sauce bottle,yellow wine bottle.
    200ml-5000 ml different size of shampoo bottle,body wash bottle,-detergent bottles and others Toiletries and different children's toys.
    · Optional pearly lustre layer co-extrusion system.
    · According to the product size.select different cavity of die head.
    · According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
    · According to customer's requirement.optional auto-deflashing on line,scrap conveying on line,finished product conveying on line and others.
    Technical parameters
    PerformanceUnitBM02DBM05DBM12DBM20D
    Max.product volumeL251220
    Dry cyclePc/h900*2700*2600*2600*2
    Die head structureContinuous typeContinuous typeContinuous typeContinuous type
    Main screw diametermm65759090
    Max. plasticizing capacity(PE)kg/h7090160160
    Driving motorKw22304545
    Oil pump motor powerKw7.5111515
    Clamping forceKN4070120160
    Space between platenmm138-368150-510240-640280-680
    Platen size W*Hmm286*330350*400450*500500*520
    Max. mould sizemm300*350360*400500*520560*520
    Platen moving strokemm420450/520600/650650
    Heating power of die headKw67.51012.5
    Machine dimension L*W*Hm3*1.9*2.43.7*3.1*2.74.2*3.2*34.3*3.2*3.1
    Machine weightT58.51214
    Total powerKw45609093

    Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements.

    About us


    Changzhou Dyun Environmental Technology Co.,Ltd is a plant company of Jwell Machinery Co.,ltd which specialized in production of all kinds of plastic crusher, single screw pelletizing line, paraller twin screw pelletizing line, conical twin screw pelletizing line, PP,PE,PET crushing, washing and drying line, mixer, dryer, feeder and PVC compounding systems. All products have CE certification. Every product can push the field forwarder to enegy saving, convinence and environmentation. They give new life to plastic.


    Dyun Environmental Technology Co., Ltd., the only environment-protection oriented modern subsidiary corporation of Jwell Machinery Co., Ltd., is specialized in environment protection machinery and the development, design, manufacture and sale of plastic recycling machine.

    With more than 20 years of development and experience, our equipment has evolved from simplicity to diversity, and we have more than 30 inventions and innovations, and our product struc- ture is increasingly complete. The main products of Dyun are plastic crusher series, single-shaft series, double-shaft shred- der series, four-shaft shredder series, single-screw pelletizing machinery, twin-screw pelletizing machinery, and complete recycling equipment for waste plastic washing line, waste tire reusing line, waste refrigerator (household appliance) crushing line, and waste circuit board recycling line


    After-sale service:


    DYPS pipe crusher 2

    • The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.
    • Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible
    • Buyer can send engineers to our JWELL company for training
    • We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English
    • We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer

    CERTIFICATES


    Our Products Have Passed Many Certificates.


    1500kg h PET Single Screw Pelletizing Machine 3


    FAQ


    1. How soon can I get a quotation?


    For most projects, once we know the necessary information about the recycled raw material, we can provide you with a quotation within 24 hours.


    2. Can I have a customized design?


    We design and construct each project according to customer's needs.


    3. How do I know I can trust ordering from you?


    Jwell is the top class manufacturer of plastic machinery in China.The first screw was made by our company(JIN HAI LUO) in 1978.We provide professional extruder and all kinds of extrusion line,such as pipe,sheet, profile, plate, film,blow moulding and recycling extrusion line.We have delivered our machines to over 170 countries.We also have overseas offices in many countries.Customers are satisfied with the machines and our service.
