Brand Name : | JWELL&DYUN |
Model Number : | JWL45/65/90/120/150/180/200 |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T, L/C,Cash |
Supply Ability : | 10 sets per month |
Delivery Time : | 30 work days |

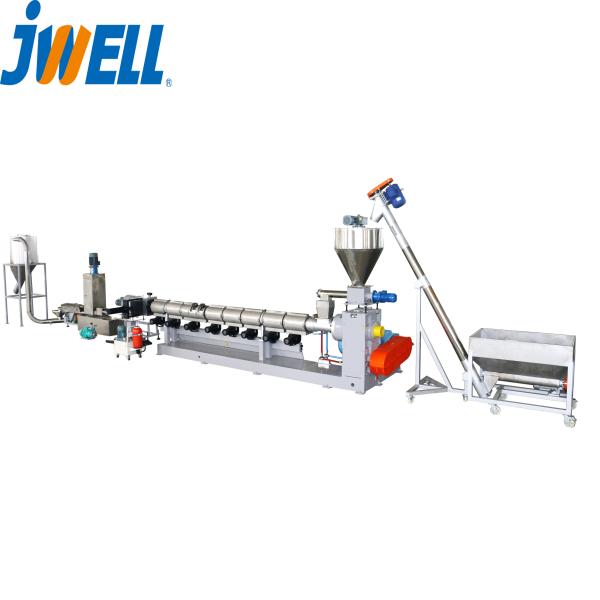

PP PE ABS PET Single Screw Water Ring Cutting Pelletizing Machine
Description:
This pelletizing machine has special screw design and different configuration, it is suitable for the recycling of PP, PE, PS, ABS,PC, etc. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, and they have very high mixing efficiency and the production capacity is high.The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output are more stable and the pellets are more uniform
Model | Screw Dia. | L/D | Screw Speed | Main Motor Power | Output | |
JWL45 | 45 | 25-35 | 20-100 | 11-15 | 30-50 | |
JWL65 | 65 | 25-35 | 20-100 | 30-37 | 60-120 | |
JWL90 | 90 | 25-35 | 20-90 | 45-55 | 180-200 | |
JWL120 | 120 | 25-35 | 20-75 | 75-110 | 250-350 | |
JWL150 | 150 | 25-35 | 20-75 | 110-160 | 350-500 | |
JWL160 | 160 | 25-35 | 20-70 | 132-185 | 400-550 | |
JWL180 | 180 | 25-35 | 20-70 | 200-250 | 600-800 | |
JWL200 | 200 | 25-35 | 20-60 | 250-315 | 800-1100 |
After-sale service:
CERTIFICATES of Pelletizing Machine
Our Products Have Passed Many Certificates.
![]() |
